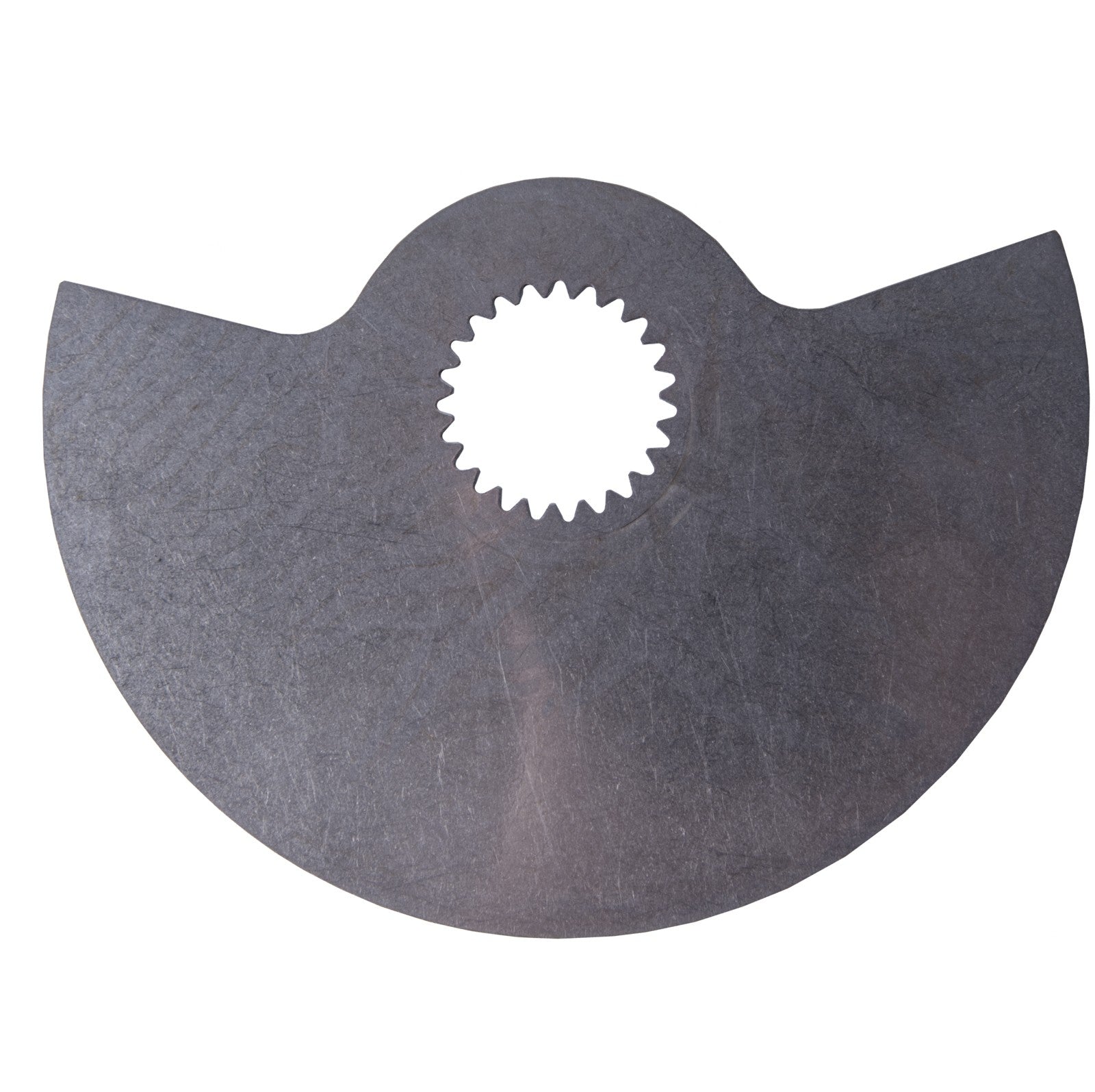

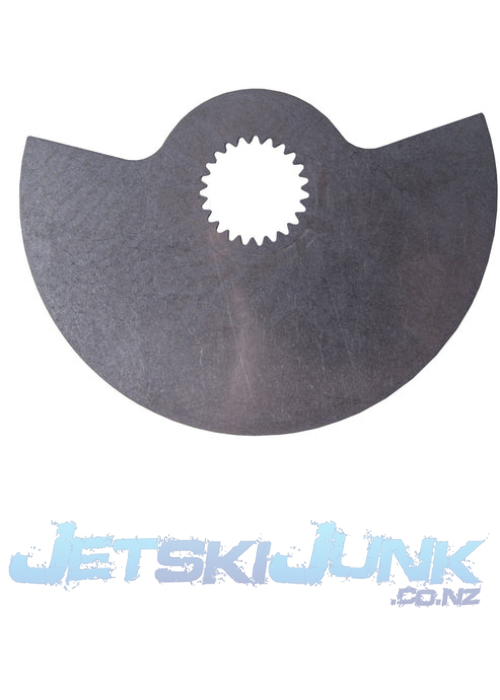

Sea-Doo 147 Degree Rotary Valve

• This is a new 147 Degree Rotary Valve.
• A rotary valve refers to the fuel intake valve of earlier Sea-Doo two stroke engines.
• The rotary valve is driven off of a gear on the rotary shaft in the crankcase between the cylinders.
• This motion allows the intake port to be opened and closed in time with the engine power pulses.
• The rotary valve allows the port to have no restriction.
• Rotary valve engines are a very efficient design with complete control of airflow into an engine.
• They allow the air/fuel mixture to flow without any airflow restrictions (unlike like reeds).

Applications:

• Explorer (1993-1997)
• GTI (1996)
• GTS (1992-1996)
• GTX (1992-1994)
• SP (1991-1996)
• SPI (1993-1996)
• SPX (1993-1994)
• XP (1992-1993)
• XPI (1994)

Replaces OEM Part Number(s): 420924508, 290924508
